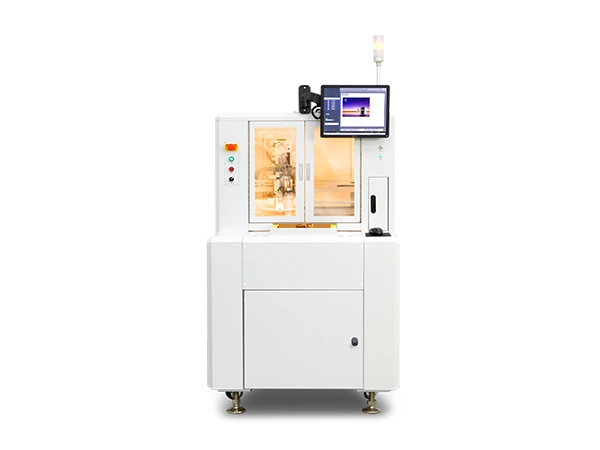

The AM300Q is a non-contact, 5-axis coordinated dispensing system designed for applications such as side-edge dispensing on screens, middle frames, and wearable devices. It is compatible with proprietary pneumatic jet valves and piezoelectric valves, enabling it to meet customized dispensing process requirements.
Equipped with a high-performance 5-axis coordinated motion control system, it supports a wide range of interpolation modes, including standard curves, linear interpolation (any axis), and spatial interpolation for arcs, spirals, ellipses, involutes, conical/helical paths, and spline curves. It is suitable for sealing and reinforcement applications on both circular and irregularly shaped products. Both the control system and hardware feature a modular design, allowing for flexible adaptation to diverse product processing requirements.

With the rapid growth of the electronics assembly and semiconductor markets, the industry is placing increasingly high demands on production efficiency and reliability.
By eliminating the wait times associated with traditional vacuum plasma processing, MYSmart MYS series cleaning systems deliver significant gains in throughput and overall yield, while ensuring the safe handling of all sensitive electronic components.

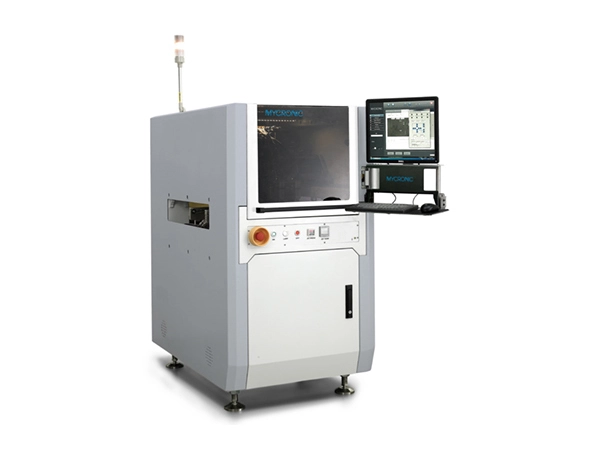

The MYJ10X inline solder dispensing platform is designed to perfectly meet complex dispensing requirements for flexible applications.
It is suitable for scenarios requiring varying solder volumes or handling pads of different heights—whether for initial dispensing or rework—and is particularly well-suited for flexible production and rapid prototyping. It is widely used in precision manufacturing sectors such as SMT, FPC/PCB, LED, and MEMS.

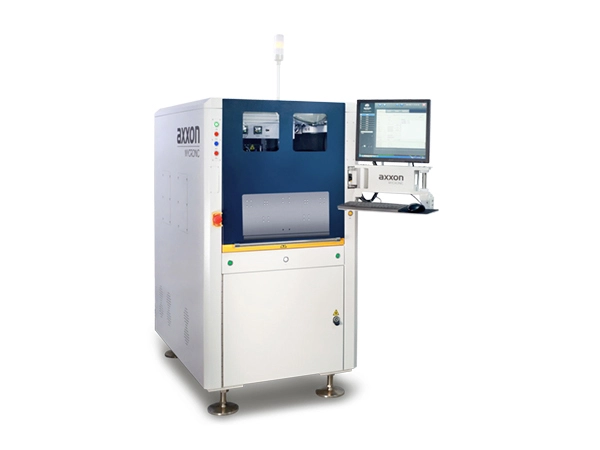

During the operation of the Ai400T dispensing system, product positioning and dispensing tasks are separated into two distinct stations that operate in parallel, thereby enhancing efficiency.
Once a product is fed into the machine, it first moves to the identification station for visual positioning—which involves recognizing fiducial marks or detecting straight and arc edges to determine the product's location or deformation—and subsequently proceeds to the dispensing station, where the dispensing operation is performed based on the path planned at the identification station.

The 3D AVI function is used for the automatic inspection of dispensing results.
It enables automatic inspection of dispensing quality, covering parameters such as bead width, bead height, adhesive overflow, insufficient adhesive, dispensing position offset, and dispensing volume, thereby ensuring high dispensing precision from multiple angles and perspectives.

2D AVI can be used for the automated inspection of dispensing results.
It enables the detection of missing dispense points, encapsulation issues, scattered dots, and broken dispensing lines, as well as the measurement of bead width—offering a time- and labor-saving solution with high accuracy. Compared to manual inspection, it significantly enhances both efficiency and precision.
