Sometimes, even slight changes in the internal geometry of the injection valve can cause manufacturers to notice differences in dispensing performance. Therefore, even if the two jet valves have the same dispensing setup, there may be slight differences in dispensing results. This is also why dispensing results sometimes change after removing the fluid tank, cleaning and maintaining it, and then installing the glue return valve.
The proprietary self-regulating calibration technology of the PICO XP injection system controls changes in fluid tank tolerances to maintain the same micro-dispensing repeatability between different rubber valves and after valve maintenance.
PICO and PICO XP jet dispensing
Learn how the PICO XP injection system compares the change in adhesive dot weight as the injection valve temperature rises compared to the standard PICO system.
Redefining the repeatability of jet dispensing
Self-adjusting calibration function enhances repeatability Micron (μm) stroke adjustment and unique self-regulating calibration enable this revolutionary jet dispensing system to maintain excellent dispensing repeatability over long-term operation, unaffected by environmental factors.
Maintain micron-level travel
The continuous automatic target stroke calibration allows the system to self-adjust to maintain its micron (μm) stroke settings over a long period without environmental factors, such as changes in valve temperature over time without affecting dispensing performance.

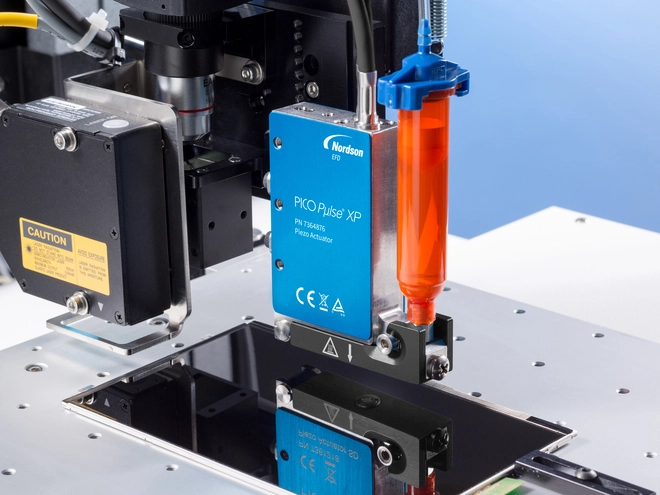

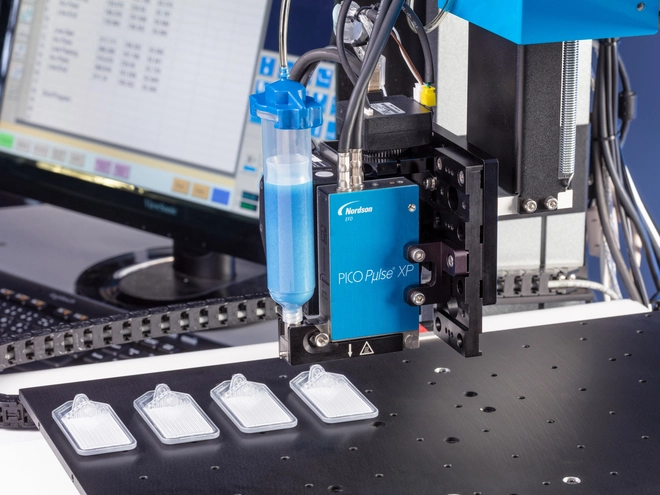

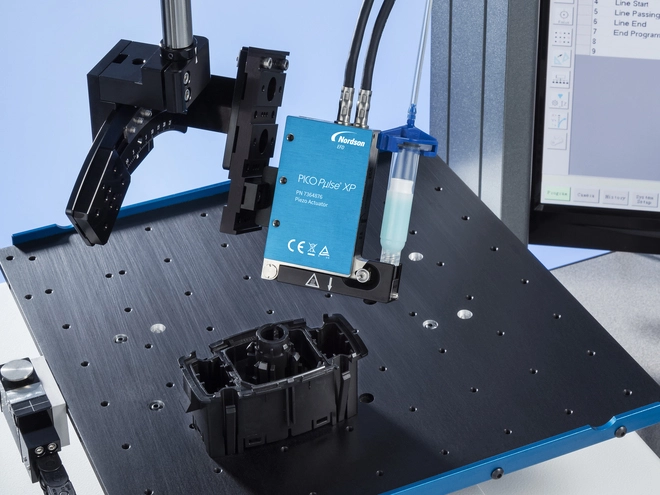

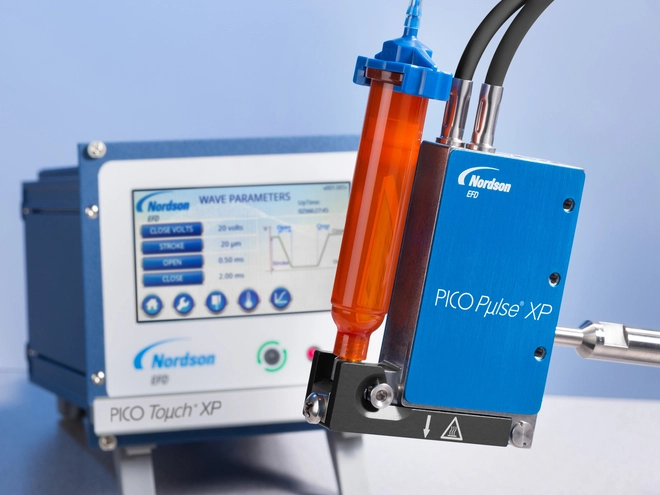

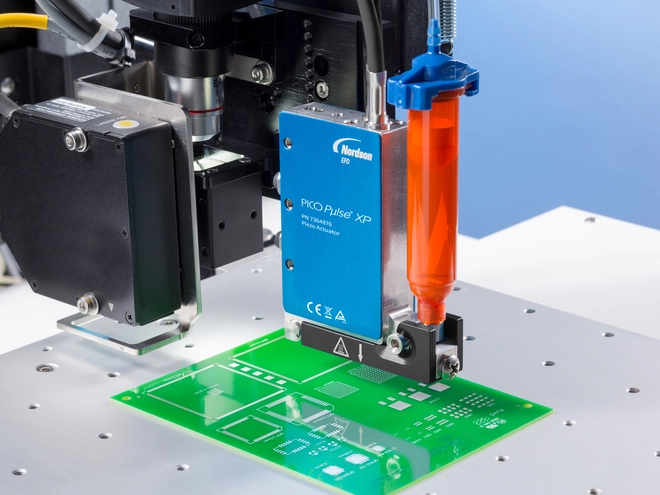

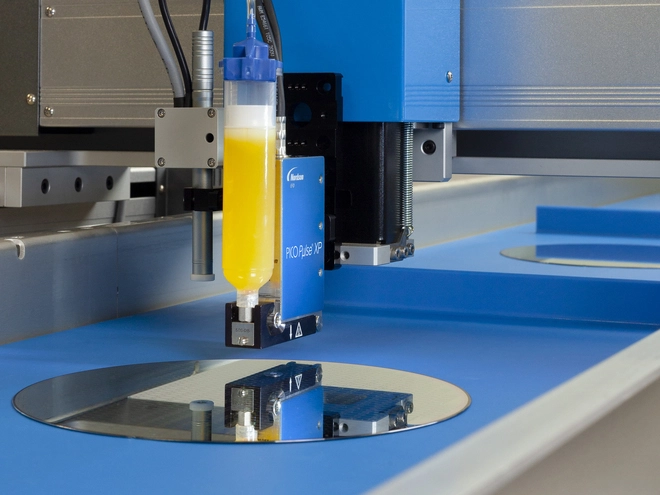

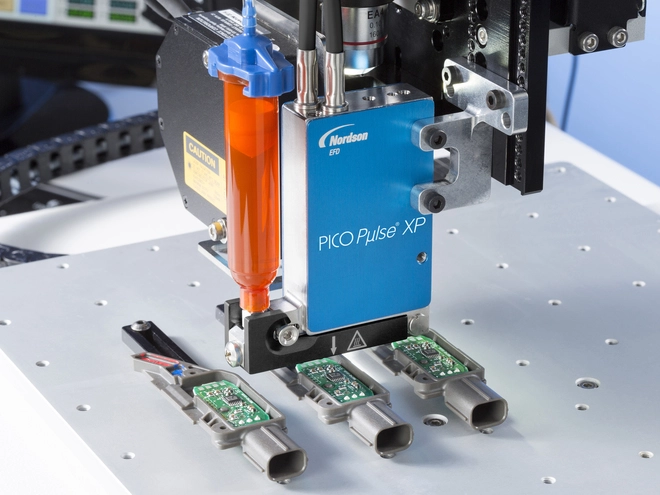

High-speed spray, operating frequency up to 1000Hz The system includes a PICO Pμlse XP jet valve and a PICO Toμch XP controller, featuring an intuitive touchscreen interface for easy setup. It can continuously spray tiny dots as small as 0.5 nL at speeds up to 1000 Hz (dots per second).
Increase capacity

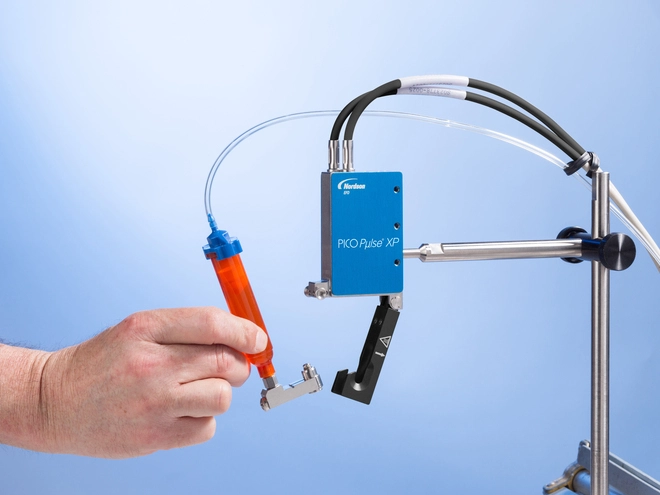

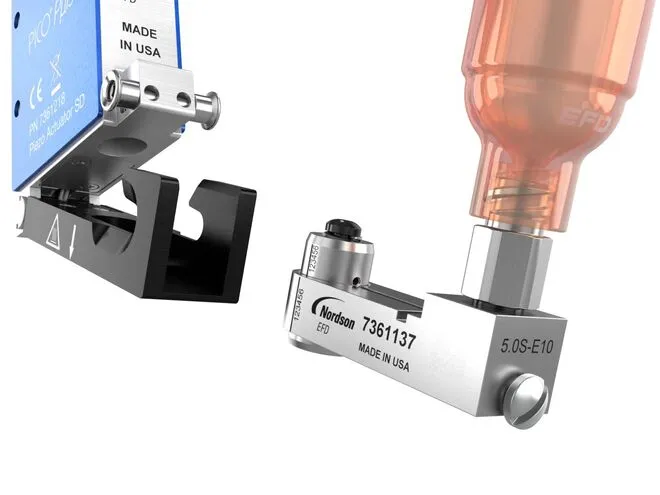

The innovative tool-free lock mechanism of this jet valve enables easy removal of wet components, reducing maintenance time to just seconds and significantly increasing production capacity.
Meeting ever-changing needs
Its interchangeable modular design offers flexibility to meet evolving production demands. We offer a wide range of fluid tank assemblies, providing precise, repeatable, non-contact micro-dispensing for diverse application needs. Various sizes of holes are available, with diameters ranging from 50-600 μm.
Through this practical step-by-step video, learn how to clean the fluid tank components of the PICO Pμlse XP jet valve:
How to clean the PICO fluid tank components
|
PICO XP injection system |
|
|---|---|
| Material number | Description |
| 7366525 | PICOPμlse XP jet valve |
| 7364877 | PICOToμch XP controller |
