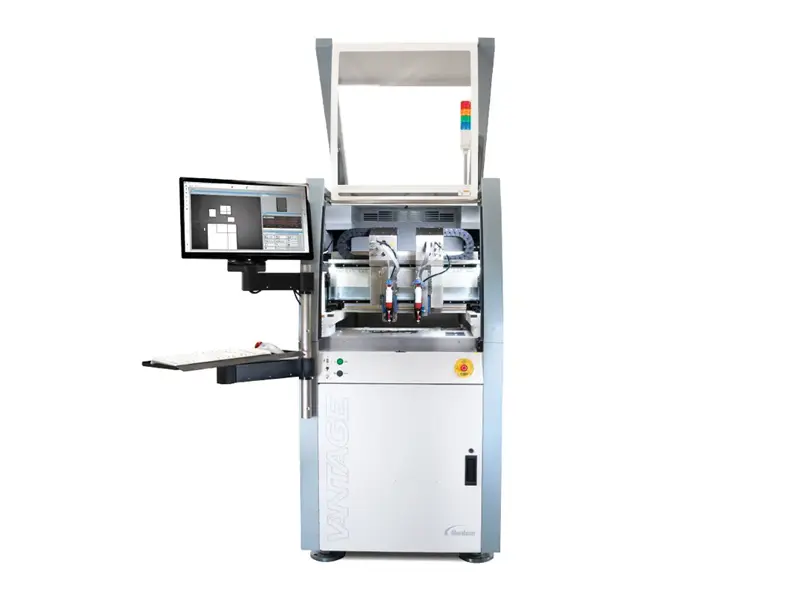

ASYMTEK Vantage Series

CKD Technology not only have brand new machines in stock, available immediately.

We also have a detailed rental business, ready to serve your specific production requirement while significantly lowering your initial investment. Contact us for more details.

CKD has a team of professional engineers ready to deliver turnkey service.

For trading of used machines, please contact us via WhatsApp or email.

Overview

Create unmatched dispensing processes using the ASYMTEK Vantage® series, IntelliJet® jetting systems, and Canvas® software.

The miniaturization of products and components presents unique challenges for fluid dispensing processes. Dispensing applications must deliver precise, consistent results within very tight dimensions. To meet UPH (Units Per Hour) targets, applications need to run rapidly. The Vantage series delivers all this and more, offering industry-leading precision, speed, and accuracy, making it a popular choice for advanced semiconductor packaging applications.

Choosing a standard system solution ensures you receive your new system in the shortest possible time.

ASYMTEK Vantage Series:

Jet into gaps between die of <200 μm.

Avoid keep-out zones of <250 μm.

Dispense at 49,000 DPH with a single IntelliJet valve.

Dispense at 90,000 DPH using dual IntelliJet valves—an 84% increase in DPH compared to single-valve dispensing.

Achieve fast, repeatable setup via automatic calibration.

Advanced Canvas dispensing software.

Patented* real-time correction improves wet dispense accuracy and yield.

Closed-loop control and data traceability keep your process accurate.

Industry 4.0 Connectivity Ready – Integrate Nordson dispensing equipment with your FIS or MES using the ASYMTEK NE Connect API and Software Development Kit (SDK) standards within Canvas software.

*Nordson US Patents 9,707,584; 10,150,131; 10,737,286 and other patents pending.

Choose the standard system solution that meets your needs:

Essential – An indispensable single-valve system that easily handles low-volume dispensing, tight keep-out zones, and fine, precise lines.

High Volume – Adding a precision scale makes this system an excellent choice for maximizing volume control, navigating keep-out zones, and increasing throughput with a single valve.

Productivity – Achieve maximum maneuverability by mounting dual valves on independent heads, thereby boosting throughput and output.

This dual-valve dispensing configuration features patented* real-time correction capabilities that automatically adjust for tilted parts and component height variations on the X and Y axes, allowing for the processing of two parts in a single pass.

Productivity Plus – Designed for demanding applications. Productivity Plus includes a precision scale for maximum volume control and keep-out zone avoidance. Dual independent valves accelerate throughput and support patented* real-time correction to enhance yield.
