Overview

For standard injection systems, monitoring and adjusting dispensing parameters is a challenge, especially in multi-gel valve installation applications. Due to embedded human-machine interfaces (HMIs), installers often place standard jet controllers on panels far from dispensing stations, which greatly inconveniences users with parameter adjustments. Therefore, we designed a compact, plug-and-play 24VDC jet controller mounted on DIN rails, which can be connected, controlled, and monitored via the human-machine interface at the dispensing station.

Characteristics

Industrial Ethernet PROFINET® and EtherNet/IP™ communication protocols NX protocol based on TCP/IP The intuitive web interface makes it easy to set up, program, and monitor jet valves DIN rails can be installed in existing cabinets Supports 24VDC plug-and-play

Advantages

Supports plug-and-play smart factory integration through robust network connectivity, control, digitalization, and enhancement technologies Multiple injection systems can be controlled via human-machine interfaces installed at the dispensing stations Providing real-time manufacturing information to enable data-driven production processes System programming is simple and can be quickly integrated into your manufacturing processes

Unlock unlimited connectivity

possibilities with the PICO Nexμs injection system

Watch this video to learn how PICO Nexμs

controllers connect your injection system to Industry 4.0 efficiency, save

space on the factory floor, and learn more.

Experience greater efficiency,

productivity, and flexibility

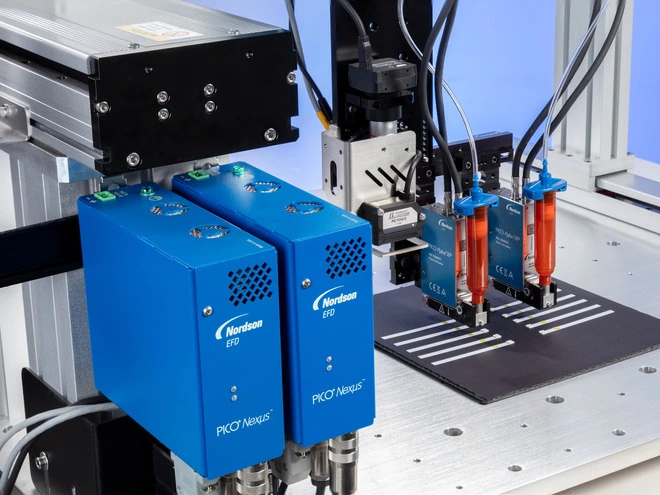

The PICO Nexμs injection controller from

Norsen EFD can be used for backend control of the PICO Pμlse XP injection

dispensing valve via PLC or other plant controllers. It communicates via

industrial Ethernet using standard protocols such as PROFINET® and

EtherNet/IP™, allowing you to easily control the injection system from your

chosen human-machine interface.

Save space for the factory

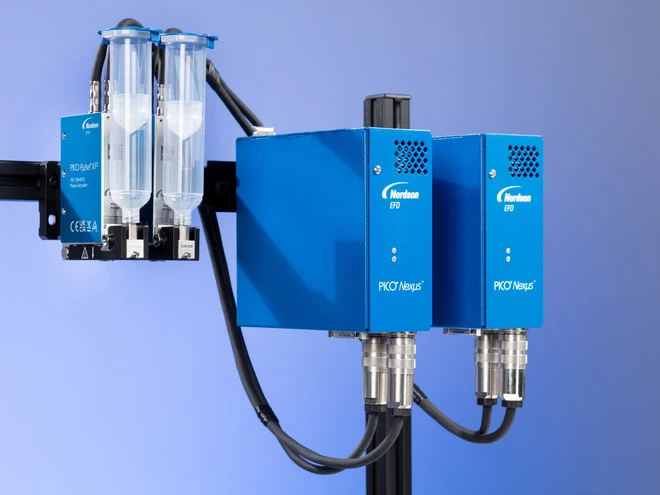

The PICO Nexμs controller is compact and

uses DIN rail mounting, allowing manufacturers to easily install multiple

controllers within existing cabinets, saving valuable production space. Without

an embedded touchscreen interface, operators can control these devices using

PLCs or other plant controllers and connect them to HMIs such as personal

computers or device monitors.

Intuitive web interface

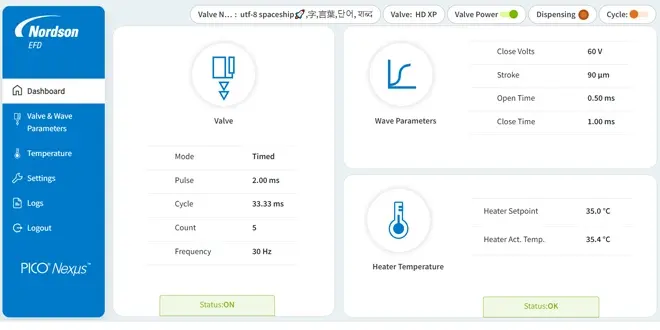

Use, use an intuitive web interface to set

up, program, and monitor your jet valve on-site or remotely. Easily browse the

dashboard and adjust cycles, pulses, and frequencies for real-time control.

Dispensing logs record dispensing parameters to achieve optimal quality

control.
