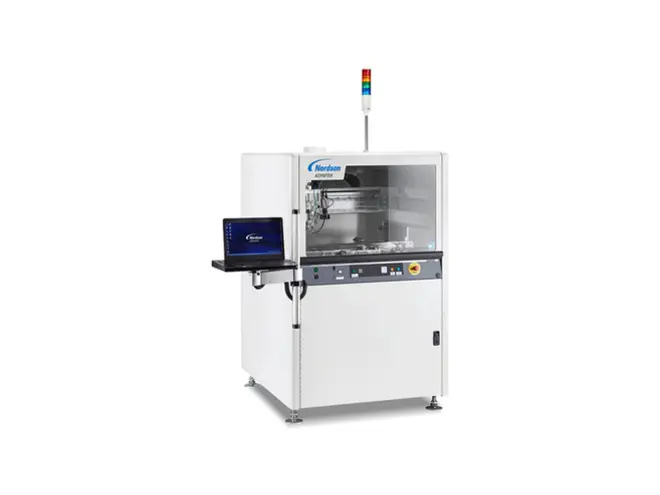

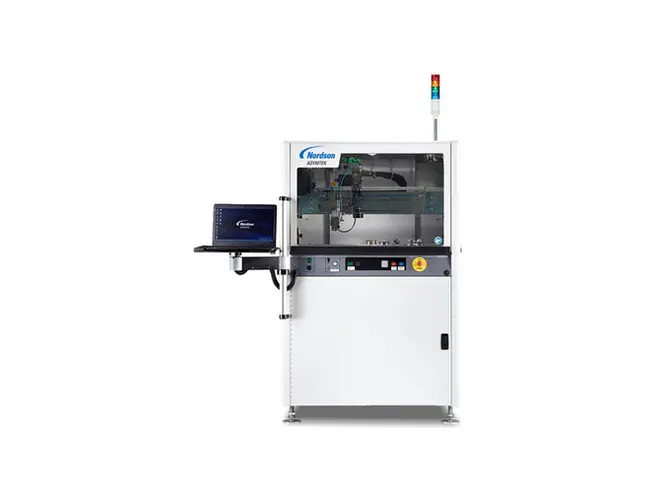

ASYMTEK Select Coat SL-940

Overview

Reliability is our forte. We combine the powerful capabilities of the SL-940 Flex-Neddle system with essential option bundles into standard trim packages. This simplifies equipment selection while delivering automation, process control, traceability, consistency, and efficient changeover—all to achieve superior conformal coating results.

By choosing a standard trim package, you get the conformal coating capabilities you need with the shortest possible lead times.

Equipment Selection Made Easy

Our conformal coating trim packages support both low-viscosity solvent-based fluids (25–125 cps) and medium-viscosity high-solids fluids (125–1200 cps).

Choose the Trim Package That Fits Your Needs

Basic – Use this single-valve solution to provide fundamental protection for circuit boards, components, and electronics against harmful environmental conditions such as moisture, thermal shock, static, vibration, and contamination.

Productivity – Increase throughput with dual-valve manual synchronization, coating two parts simultaneously (multi-part processing) and cutting process time by 50%.

Selective – Achieve maximum control and keep-out zone avoidance with a dual-valve configuration; reduce masking requirements to deliver true selective coating performance.

Productivity Enhancement – Rapidly increase throughput and access hard-to-reach areas by combining dual-valve synchronous dispensing with a third valve, enabling coverage of large and highly selective areas in a single application.

Multi-Process Efficiency – Triple-valve capability supports both conformal coating and gel dispensing on the same board, allowing for the creation of dams to prevent fluid from flowing into keep-out zones.

Essential Option Bundles Offer Specialized Enhancements

Rapid Changeover Ready – Efficiently manufacture multiple products using the same coating equipment. This bundle allows you to effectively switch between board sizes and programs.

Maintenance Monitoring Ready – Keep your process running without interruption. This package tracks fluid levels so you can replenish supplies before they run out.

Humidity Sensitivity Ready – This kit prevents premature fluid curing and keeps wetted fluid lines, dispense guns, and nozzles clean.

Industry 4.0 Connectivity Ready – Integrate Nordson coating equipment with your FIS or MES using the ASYMTEK NE Connect API and Software Development Kit (SDK) standards found in EasyCoat® software.
