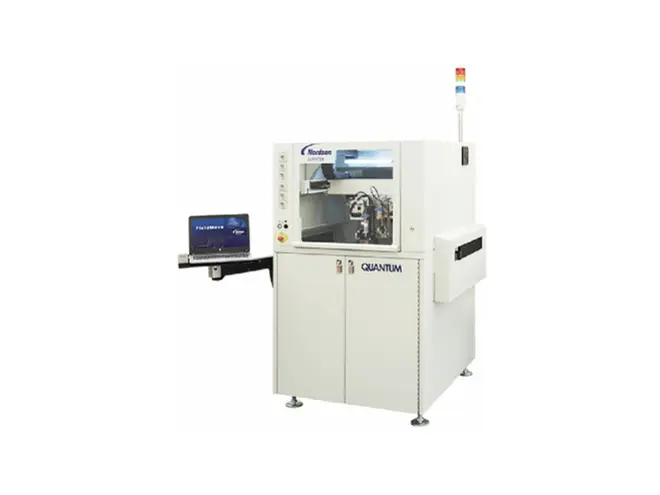

ASYMTEK Quantum Q-6800 High-Value Fluid Dispensing System

CKD Technology not only have brand new machines in stock, available immediately.

We also have a detailed rental business, ready to serve your specific production requirement while significantly lowering your initial investment. Contact us for more details.

CKD has a team of professional engineers ready to deliver turnkey service.

For trading of used machines, please contact us via WhatsApp or email.

Overview

The Quantum® Q-6800 Series delivers unmatched quality, speed, flexibility, and value for the automotive industry, PCBA, and various electronics assembly applications through both batch and in-line dispensing.

Choose a standard system package to obtain a fluid dispensing system with the shortest lead time.

Quantum Series

Large dispensing area (423 x 458 mm) accommodates a wide range of substrate sizes

Supports CSP, BGA, and board-level underfill

Supports surface mount adhesives, corner and edge bonding, dam-and-fill, potting and encapsulation, conductive epoxy, and housing assembly applications

Increases throughput via dual-action dispensing

Patented closed-loop process control improves yield

Feature-rich Fluidmove® dispensing software

Select System Packages

Essential – A cost-effective and reliable single-valve dispensing solution designed for the automotive industry, PCBA, and various electronics assembly applications.

Productivity – Increases throughput via dual-action dispensing and queue-ahead processing capabilities. Dual-action dispensing allows two materials to be applied to the same part, boosting output by up to 25%.

Productivity Plus – Dual-action dispensing of two materials increases throughput, while queue-ahead and queue-behind processing minimize transport time, achieving maximum productivity.

Supported Hardware and Software

DV-0x Time-Pressure Valve

Mass Flow Calibration (MFC)

Dual-channel dispensing

CPJ+ Programmable Fluid Valve Pressure

Laser height sensor

Pre-queue and post-queue dispensing

Software

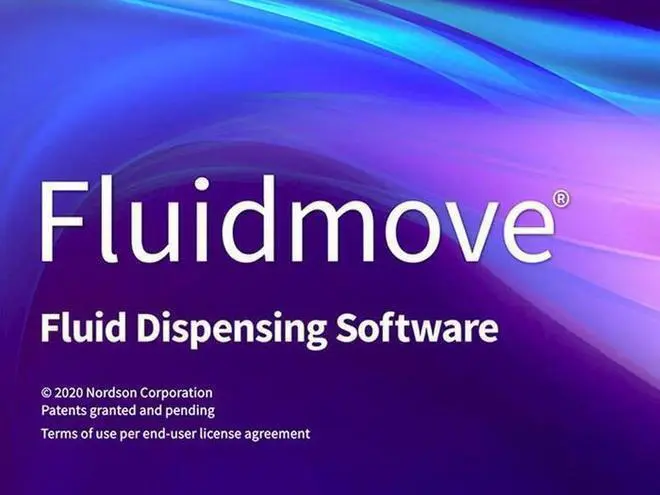

Fluidmove Software

Fluidmove software provides multi-level process control and a wide range of features for Nordson ASYMTEK dispensing systems. Capabilities include fiducial finding, iterative virtual dot dispensing, and support for ASYMTEK’s extensive system options—such as Tilt Dispensing, Automatic Dual-Simultaneous (ADS), and the Monocle™ Vision Package (MVP).
