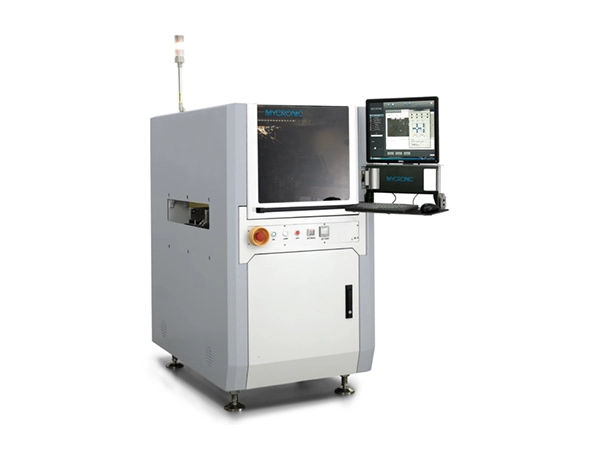

The MYJ10X solder paste jet printing system accommodates non-planar PCBs (with height differences of less than 0.4 mm) and offers controllable solder paste thickness, allowing users to specify different thicknesses at various locations. It supports printing directly onto components—making it suitable for 3D/stacked assembly processes—and delivers high efficiency by eliminating the need for stencils.
- No stencil required; especially suitable for applications requiring specific solder joint shapes
- Rapid programming and verification for different products
- Capable of handling significant variations in solder volume between adjacent pads on the same product
- Easily supports PoP (Package-on-Package) solder dispensing applications
- No cleaning required; extremely easy maintenance
- Particularly suitable for products with high integration density
- Flexible dispensing suitable for products with uneven surfaces (varying heights); precise control of solder volume
| Basic Parameters | MYJ10X In-line Solder Paste Jetting Platform |
| Dimensions | 770 x 1200 x 1400 mm (W x D x H) |
| Machine Weight | 650 kg (Standard configuration) |
| Dispensing Area | W x D = 350 mm x 475 mm (Standard configuration) |
| Max. PCB Size (Single-lane Mode) | W x D = 350 mm x 475 mm |
| Max. PCB Size (Dual-lane Mode) | W x D = 350 mm x 210mm (dual-track simultaneous) |
| Conveyor | Height 890–965mm; standard SMEMA communication; dual-track option available |
| Conveyor load capacity (incl. fixture) | 3kg (customization required for heavier loads) |
| Conveyor width adjustment range | Single-track: 50–475mm; dual-track simultaneous: 50–210mm |
| PCB thickness | 0.5mm < T < 6mm; customization required for other thicknesses |
| Positioning accuracy | ±30μm @ 3σ (X, Y) |
| Repeatability | ±15μm @ 3σ (X, Y) |
| Max. speed | 1000 mm/s (X, Y) |
| Max. acceleration | 1g (X, Y) |
|
|
|
| Basic parameters | Solder paste jetting valve |
| Valve configuration AP (small) | 215–260μm; 2.1–3.2nl; 200Hz |
| Valve configuration AG (medium) | 330–520μm; 5–20nl; 160–300Hz |
| Material feed air pressure | 15.9 Psi |
| Jetting height | 0.6±0.1mm |
| Certification type | CE |
