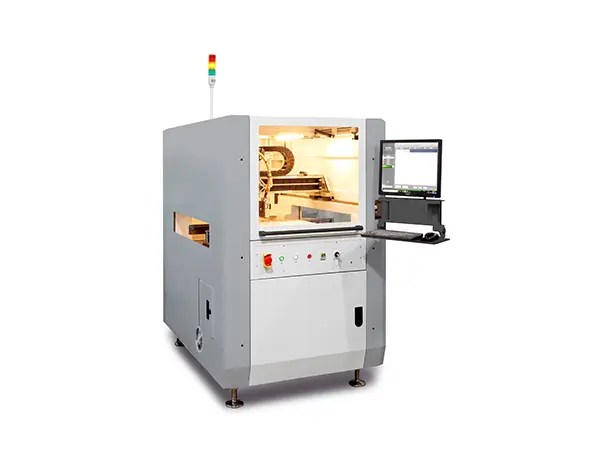

The MYS10iL series is a fully automated, in-line plasma processing system developed for applications across various sectors, including semiconductors, electronics, SMT, optoelectronics, and medical technology.
• Atmospheric-pressure argon plasma system
• 100mm-wide inline batch plasma processing; offers 2–5 times higher efficiency and over 30% lower operating costs compared to traditional methods
• 100% neutral plasma; safe and gentle on sensitive electronic components—no plasma bombardment, static electricity, sparks, arcs, dust, high temperatures, surface ripples, or UV radiation
• Versatile chemical processes: O2 process for removing organic contaminants; H2 process for removing metal oxides and activating product surfaces
• Generates no particulate or liquid contamination on the product
| Basic Parameters | MYS10iL |
| Power Requirements | AC 200~240V, 4.5kW, 20A, 50/60Hz |
| Air Pressure Requirements | 90psi (6bar) |
| Dimensions | 1000 x 1500 x 1550mm |
| Weight | 1050kg |
| Certification | CE |
| Positioning Accuracy | XY: ±50µm @ 3σ; Z: ±10µm @ 3σ |
| XYZ-Axis Repeatability | XY: ±25µm @ 3σ; Z: ±5µm @ 3σ |
| Maximum Speed | 1000mm/s (XY) |
| Acceleration | 1.0g |
| Drive System | AC servo |
| Work Platform Parameters | |
| Conveyor Type | Belt |
| Conveyor Load Capacity | 3kg |
| PCB Thickness Range (without carrier) | 0.5–6mm |
| Z-Axis Travel | 60mm |
| Max. Component Height (Top Side) | 45mm |
| Max. Component Height (Bottom Side) | 23mm |
| Communication Protocol | SMEMA |
| Working Range | |
| Plasma Treatment Area (W×D) | 550–760mm |
| Water Contact Angle (WCA) after plasma treatment |
WCA < 10° (Silicon wafer) WCA < 20° (Non-metallic materials) |
| Plasma treatment method |
O2 process for organic contaminant removal H2 process for metal oxide removal |
| Plasma system equipment requirements | |
| RF power | 600W at 27.12MHz |
| Main plasma gas | Argon |
| Process gas | O2, N2, or H2 |
| Gas supply pressure range | 40–100 psi (0.3–0.7 MPa) |
