The X, Y, and Z axes utilize servo motors and ball screw drives, ensuring a stable and durable structure; the R-axis can operate in coordination with the X, Y, and Z axes to enable dispensing along spatial trajectories.
• Capacitor reinforcement

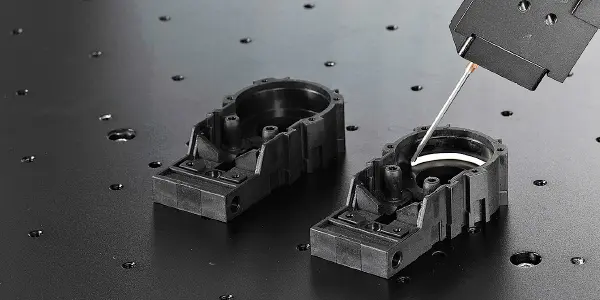

• Water tank housing sealing
• Inductor coil reinforcement
• Relay bonding

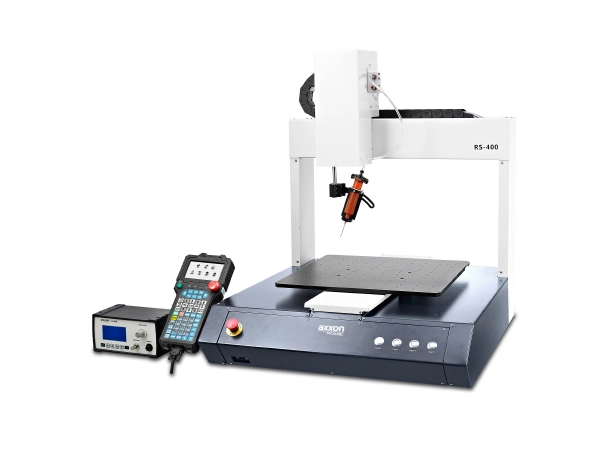

| Basic Parameters | RS-400 | RS-500 | RS-400H |
| Dimensions W×D×H (mm) | 640×750×811.5 | 806×941×902.5 | 640×746×812 |
| X/Y/Z Axis Travel (mm) | 400×400×100 | 500×500×100 | 400×400×100 |
| Equipment Weight (kg) | 105 | 122 | 106 |
| R-axis rotation angle (°) | 0–360 | 0–360 | |
| R-axis repeatability (mm) | ± 0.02 | ± 0.01 | |
| R-axis maximum rotation speed (°/sec) | 360 | 720 | |
| X/Y/Z repeatability (mm) | ± 0.01 | ± 0.01 | |
| X/Y/Z maximum speed (mm/s) | 800/800/300 | 800/800/300 | |
| X/Y/Z acceleration | 0.4g | 0.4g | |
| X/Y/Z mechanical structure | H-Bridge | H-Bridge | |
| Control method | Standalone motion controller | Standalone motion controller | |
| X/Y/Z drive method | AC servo + high-precision module | AC servo + high-precision module | |
| R-axis drive method | Stepper motor + reducer | Servo motor + high-precision reducer | |
| R-axis load (kg) | 2 | 3 | |
| Y-axis table load (kg) | 10 | 10 | |
| Programming method | Handheld programmer | Handheld programmer | |
| Storage capacity (MB) | 128 | 128 | |
| Power (W) | 700 | 800 | |
