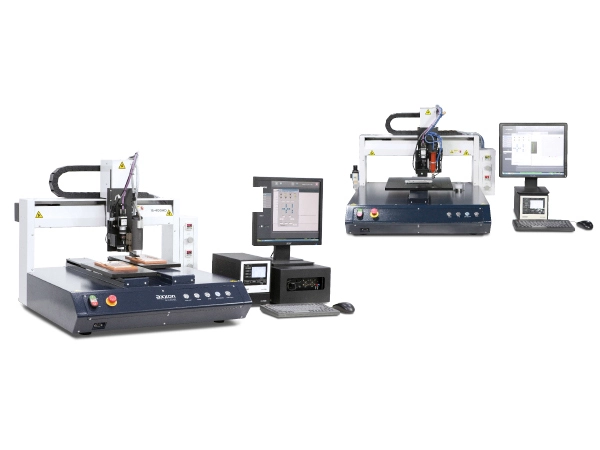

The IS series vision-enabled desktop robot boasts advanced capabilities, including automatic calibration, visual inspection, barcode and fiducial mark scanning, and Z-axis laser height compensation. These features enhance the robot's performance, enabling it to meet dispensing requirements across a wide range of applications.
• Fingerprint module dispensing
• FPC dispensing and reinforcement
• VCM and CCM dispensing
• Underfill
• Encapsulation and coating
• Corner bonding/encapsulation
• Solder paste dispensing
• Earphone dispensing and other dispensing applications
| Basic Parameters | IS-300H | IS-400H | IS-500H | IS-400HD | IS-500HD |
| Dimensions W×D×H (mm) | 606×741×638 | 706×841×638 | 806×941×638 | 706×841×638 | 806*941*638 |
| X/Y/Z 3-axis travel (mm) | 300*300*100 | 400*400*100 | 500*500*100 | - | - |
| X/Y1/Y2/Z 4-axis travel (mm) | - | - | - | 400*400*400*100 | 500*500*500*100 |
| Equipment weight (kg) | 104 | 126 | 143 | 136 | 114 |
| X/Y/Z repeatability (mm) | ± 0.01 | ± 0.01 | |||
| X/Y/Z maximum speed (mm/s) | 800/800/300 | 800/800/800/300 | |||
| X/Y/Z acceleration | 0.8g | 0.8g | |||
| X/Y/Z Mechanical Structure | H-Bridge | H-Bridge | |||
| X/Y/Z Control Method | IPC-based motion controller | IPC-based motion controller | |||
| X/Y/Z Drive Method | AC servo + high-precision module | AC servo + high-precision module | |||
| Z-axis Load (kg) | 5 | 5 | |||
| Y-axis Table Load (kg) | 10 | 10 | |||
| Programming Method | PC | PC | |||
| Storage Capacity | 120GB (SSD) | 120GB (SSD) | |||
| Power (W) | 650 | 850 | |||
| Vision Positioning System | 1.3-megapixel industrial camera | 1.3-megapixel industrial camera | |||
| Resolution (mm/pixel) | 0.01 × 0.01 (adjustable) | 0.01 × 0.01 (adjustable) | |||
| Recognition range (mm) | 14 × 14 (determined by selected lens) | 14 × 14 (determined by selected lens) | |||
| Light source | LED light source (ring light or coaxial light optional) | LED light source (ring light or coaxial light optional) | |||
