The syringe valve controller features a built-in high-speed signal response circuit that rapidly and continuously monitors dispensing signals and dispensing pressure, ensuring consistent dispensing results. It includes an automatic vacuum suck-back function to effectively prevent stringing, dripping, and air bubble entrapment. Additionally, the multi-channel storage function for dispensing parameters allows for quick switching between settings to accommodate various adhesives—such as solder paste, red glue, and UV adhesives—with differing viscosities.

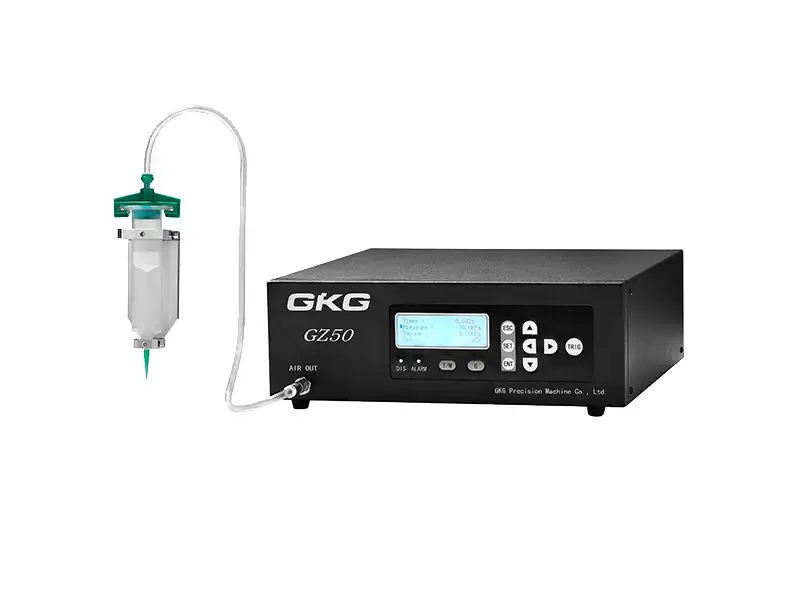

| GZ50 | |
| Dispensing Mode | Timing and manual mode |
| Dispensing Pressure Setting Range | 30.0~400kPa |
| Dispensing Time Setting Range | Manual: 0.001~9999.999s; Timing: 0.020~9999.999s |
| Vacuum Pressure Setting Range | 0.00~-20.00kPa |
| Dispensing Method | Pneumatic |
| Control Method | Microcomputer electronic control |
| Number of Channels | 128CH |
| Input Signal | 4-pin metal aviation connector; non-contact or contact |
| Output Signal | 4-pin metal aviation connector; dispensing in progress, dispensing complete |
| Air Pressure Input | 500kPa <= Air In |
| Key Functions | Automatic fluid volume difference correction, automatic vacuum pressure compensation, dispense volume compensation based on pulse count difference, automatic pressure ramping, dispensing counter, remaining fluid level display, low fluid level warning, air pressure input error, exhaust error, vacuum pressure error, solenoid valve error |
| Rated Power Supply | AC 220V/50Hz |
| Rated Power | 24W |
