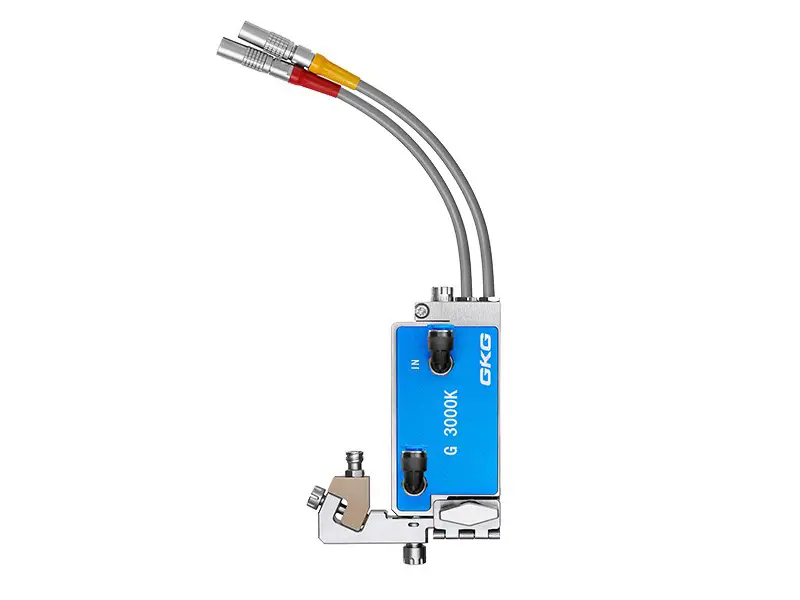

The G3000K is a non-contact jet dispensing valve driven by piezoelectric ceramics. It features a quick-release design and is equipped with nozzle heating and self-calibration functions. It is suitable for high-speed, precision-flow dispensing of various adhesives, including surface mount adhesives, conductive silver pastes, IC packaging adhesives, underfill materials, sealants, and conformal coatings. The G3000K piezoelectric valve delivers maximum value to customers in sectors such as electronics packaging, lighting, energy, and life sciences, particularly in applications requiring high precision, high efficiency, and compact footprints.
| G3000K Piezoelectric Valve Performance Specifications | |
| Max. Operating Frequency | 1000Hz |
| Optimal Feed Pressure | 0-0.3MPa |
| Minimum Dot Diameter | 0.2mm |
| Optimal Viscosity Range | 1-200,000 mPa·s |
