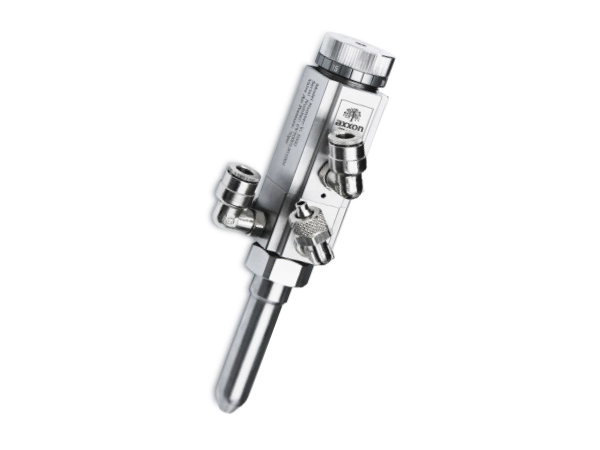

V-5000 Three-Mode Spray Valve

The V-5000 Three-Mode Spray Valve is an advanced fluid control component designed for accurate spraying, coating, and dispensing processes. With three adjustable spray modes, it delivers stable flow control and consistent application performance for industrial production lines.

Send Inquiry

Product Description

Product Features

• Three operating modes

• Uniform coating

• High efficiency

• Controllable edge definition

• Controllable coating width & thickness

• Easy disassembly and maintenance

Suitable Fluids

• Inks

• Electrolytes

• Greases

• Solvents

• Water-based liquids

• Low-to-medium viscosity liquids

Specifications

Basic Parameters	V-5000
Dimensions (L x W x H)	47 x 43 x 152 mm
Weight	220 g
Suitable Fluid Viscosity	1–10,000 cps
Max. Dispensing Rate	2.5 L/min
Valve Opening Air Pressure	70 psi
Maximum feed pressure	300 psi
Maximum operating frequency	400 cycles/min
Cylinder body material	Stainless steel
Fluid chamber material	Stainless steel
Needle and nozzle	Stainless steel
