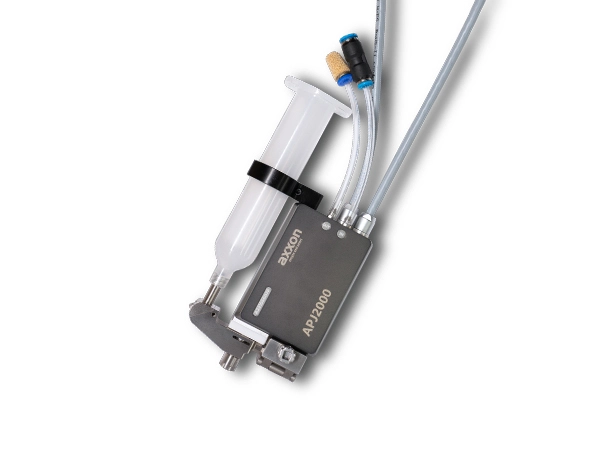

• The APJ2000 piezoelectric jet valve delivers high jetting force (at least 50% higher than the standard version) and superior fluid break-off capability.
• Piezoelectric technology enables high jetting frequencies, achieving up to 550 dots/second with a minimum dot diameter of 0.165mm.
• In-line disassembly allows for rapid maintenance and cleaning, minimizing downtime.

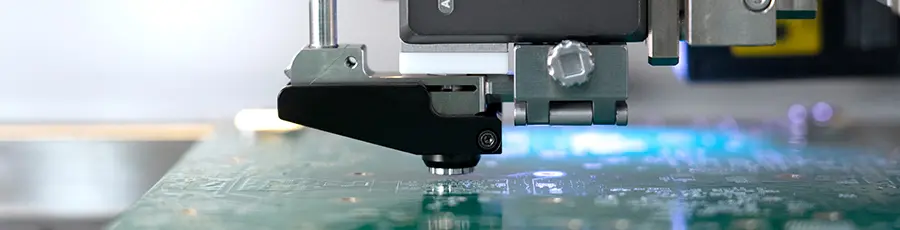

• Non-contact dispensing eliminates the need for Z-axis movement, enabling high-speed dispensing on both smooth and uneven surfaces.
• An optimal choice for jetting medium-to-high viscosity adhesives.
• Silicone applications
• Silver paste applications
• Precision coating
• SMT red glue dispensing; hot-melt adhesive bonding; and other high-viscosity adhesive applications.
• Hot-melt adhesives
• Epoxy resins
• UV adhesives
• Silicone
• Silver paste
• Red glue
| Basic Parameters | APJ2000 |
| Max. operating frequency (adjustable) | ~550 cycles/s |
| Optimal feed pressure | 0–0.3 MPa |
| Min. operating air pressure | — |
| Min. dot diameter | 0.165 mm |
| Optimal viscosity range | 1–200,000 cps |
| Jetting capability | Meets various room-temperature dispensing requirements |
| Dimensions | 117 mm × 25.4 mm × 76 mm |
| Weight | 570 g |
| Max. heating temperature | 200°C |
