CKD Technology not only has brand new machines in stock, available immediately.
We also have a detailed rental business, ready to serve your specific production requirement while significantly lowering your initial investment. Contact us for more details.
CKD has a team of professional engineers ready to deliver turnkey service.
For trading of used machines, please contact us via WhatsApp or email.

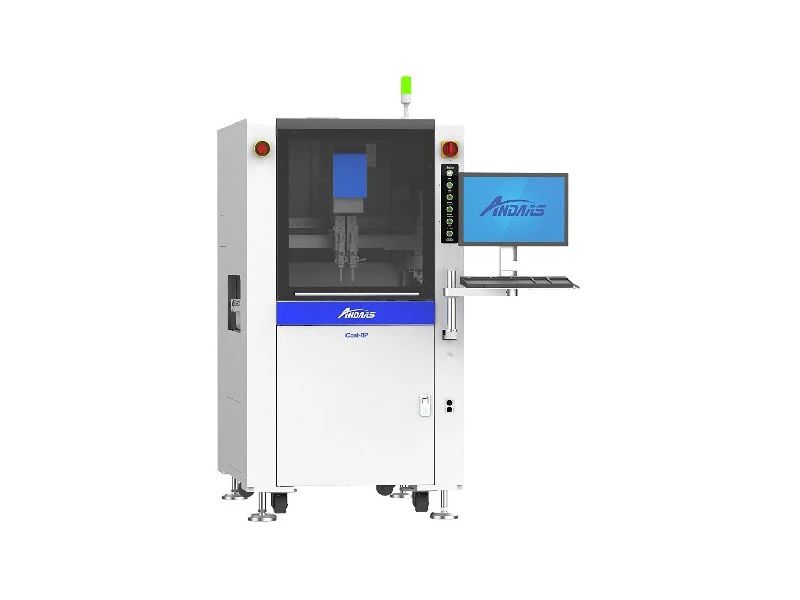

| Category | Specification | iCoat-8 | iCoat-8A | iCoat-8B |
| Coating Parameters | Coating Travel (mm) | X:450, Y:450 | X:280, Y:450 | X:330, Y:450 |
| Max. Component Height (mm) | 90 above and below conveyor surface | |||
| PCB Edge Clearance (mm) | ≥5 | |||
| Single-pass Coating Width (mm) | 2-30 | |||
| Conveyor System | Flow Direction | Left → Right (Standard) √ Right → Left □ | ||
| Conveyor Height (mm) | 900±20 | |||
| Conveyor Speed (mm/s) | 20-400 | |||
| Motion System | Valve Configuration | Dual valves in linear arrangement | Four valves arranged in a single row, grouped in pairs; spacing between valves 1 & 3 is 110–210 mm | Four valves arranged in a single row; minimum spacing between valves is 50 mm; maximum spacing between valves 1 & 4 is 220 mm |
| Maximum movement speed (mm/s) | 800 | |||
| Repeatability (mm) | ±0.02 | |||
| Facility Requirements | External dimensions (mm) | L900 × W1300 × H1710 | ||
| Equipment weight (kg) | 530 | |||
| Air pressure (MPa) | ≥0.4 | |||
| Exhaust airflow requirement (m³/min) | 15 | |||
| Power supply | AC 220V 50/60Hz | |||
| Total power (kW) | 2.2 | |||
| Control & Operating System | Control method | Industrial PC + Motion control card | ||
| Operating software | Anda control software + Windows OS | |||
| Programming method | Teach Pendant / Keyboard & Mouse Set | |||
| Communication Port | SMEMA Connector | |||
