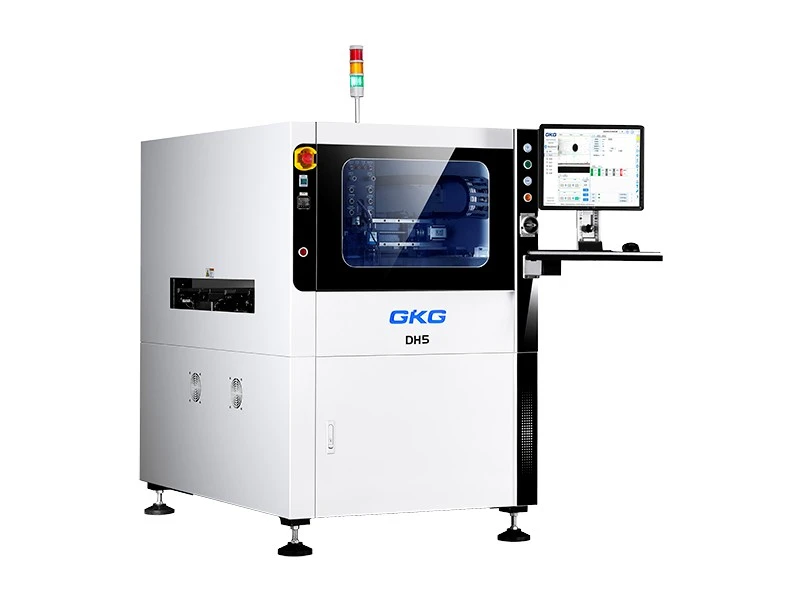

DH Series

The DH series dispensing machines feature an advanced design suitable for diverse production environments, offering exceptional cost-effectiveness. With comprehensive configurations tailored to various processes, they meet the dispensing requirements for substrates and base materials of different specifications. The use of non-contact jetting valves ensures dispensing uniformity, boosts productivity, and minimizes material waste. By integrating various dispensing technologies, we provide customized solutions tailored to specific customer needs.

Send Inquiry

Product Description

Product Applications

The D/DH series is primarily used for underfill, pin encapsulation, precision coating, PoP (Package-on-Package) stacking, dam-and-fill, SMT red glue processes, COB packaging, hot-melt adhesive bonding, and FPC component reinforcement.

Product Specifications

DH Series
X/Y/Z Repeat Position Accuracy	±15μm @ 4σ (Cpk > 1.33)
Motion-Driven Mode	Servo Motor + Ball Screw
Max. XYZ Axis Speed	800/800/400 mm/s
Dispensing Range (Max/Min PCB Size)	DH Series: XY 50×50 ~ 510×686 mm
Customizable Conveyor Options	Single-lane / Dual-lane / Bottom heating / Three-stage independent transport
Dispensing Head Functions	Synchronous dual-valve / Asynchronous dual-valve / Tilt & Rotate
Precision Dispensing Control System	0.1 mg / 0.01 mg

Machine DimensionsDH Series: 1020 x 1500 x 1500 mm
