| Feature/Configuration | Technical Parameters & Description | Feature/Configuration | Technical Parameters & Description |

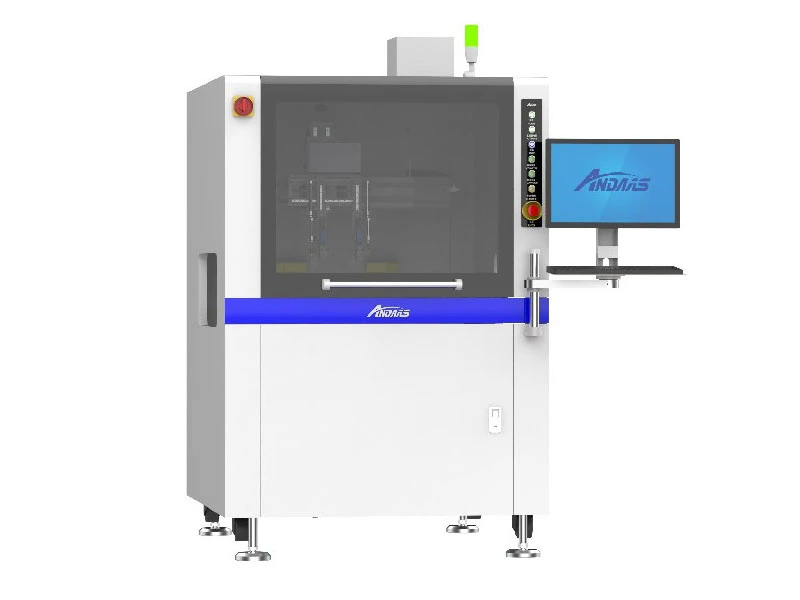

| Equipment Model | iCoat-5I | Conveyor Height (mm) | 900±20 |
| Overall Dimensions (mm) | L1400×W1100×H1870 | Conveyor Speed (m/min) | 2-16 |
| Equipment Weight (kg) | 680 | Conveyor Track | Special aluminum alloy track + stainless steel chain |
| Control Method | Industrial PC + Motion Control Card | Width Adjustment Method | Automatic + Push-button electric adjustment |
| Operating Software | Anda Control Software + Windows OS | Width Adjustment Speed (mm/min) | 250 |
| Programming Method | Teach Pendant / Keyboard & Mouse | PCB Edge Clearance (mm) | ≥5 |
| Axes | X, Y, Z, C | Conveyor Motor Power | 4 x NEMA 23 (57mm) Stepper Motors (100W) |
| Axis Drive | Servo motor + ball screw | Communication Port | SMEMA interface |
| Z-Axis Configuration | 4 valves in a linear array; electric width adjustment | Air Pressure | 0.4 MPa |
| Coating Travel (mm) | X: 110, Y: 450 | Max. PCB Size (mm) | X: 440, Y: 350 |
| Adjustable Valve Spacing (mm) | 63–110 | Exhaust Airflow Requirement (m³/min) | 15 |
| Max. Movement Speed (mm/s) | 600 | Power Supply | AC 220V, 50–60 Hz |
| Max. Component Height (mm) | 100 above and below conveyor surface | Total Power (kW) | 2.6 |
| Load Capacity (kg) | 5 | Standard Features | LED UV inspection light |
| Repeatability (mm) | ±0.03 | LED Lighting | |
| Number of Tracks | 1 | Waste Liquid Recovery | |
| Flow Direction | □ Left → Right (Standard) | ESD Interface | |
| AOI Parameters | |||
| Vision Parameters | 10MP Industrial Color Camera, Stationary Capture | Inspection Items | Excess/Insufficient Coating |
| Field of View (mm) | 465×350 | Inspection Speed (s/pcs) | 5 |
| Pixel Resolution (μm) | 127 | ||
