The pinnacle of air-pulse dispensing technology, reaching a new level of excellence.
The undisputed "global standard" and industry leader, featuring built-in eco-friendly capabilities.
■Three Major Function Upgrades
・Achieves higher dispensing precision.
■Eco-friendly Features
・Reduces residual material in the syringe; lowers power and air consumption.
■Smart Factory Support
・Enhanced production management functions.
・Network connectivity support.
・Improved PC compatibility.
・Integrated control capabilities for temperature controllers.
■Improved Usability
・Equipped with a 4.3-inch touchscreen.
■Compact and Lightweight Design
・30% reduction in unit volume (compared to our previous models).
■Eco Mode
・Reduces air consumption during operation; cuts standby air consumption by over 90% (with vacuum off).
■Sleep Mode
・Reduces power and air consumption during temporary equipment inactivity. Up to 25% reduction in power consumption during standby (screen dims, dispensing disabled)
■ Compact and lightweight
・30% reduction in unit volume (compared to our conventional models)
General Specifications

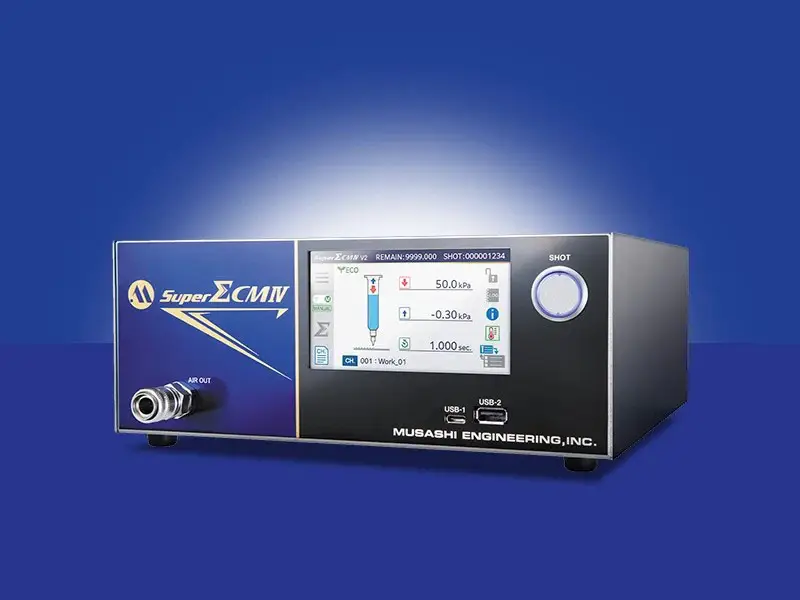

| Name: | Full-function Digital Dispenser SuperΣCMⅣ | |||
| Model No.: | S-SIGMA-CM4-CTR-V5-N | S-SIGMA-CM4-CTR-V5-P | S-SIGMA-CM4-CTR-V2-N | S-SIGMA-CM4-CTR-V2-P |
| Dispensing Mode: | Timed mode, Manual mode | |||
| Dispensing Pressure Adjustment Range: | 30.0–500.0 [kPa] | 5.0–200 [kPa] | ||
| Dispensing Time Setting Range: | 0.001–9999.999 s | |||
| Vacuum Pressure Setting Range: | 0.00 to -5.00 [kPa] | |||
| Signal Specifications: | NPN | PNP | NPN | PNP |
| Key Functions: | Automatic head pressure compensation, automatic drip prevention, automatic low-level warning, α compensation, δ compensation, vacuum pressure compensation, remaining volume display compensation, shot counter, stopwatch, Chinese/English display switching, auto-increment, auto-ramp, rapid dispensing, dispensing condition compensation, self-diagnosis, date/time, operation history, password lock, parameter backup, display language switching (Japanese/English/Chinese), display unit switching (kPa/bar), I/O function assignment | |||
| Number of Channels: | 400 CH | |||
