Fully Industry 4.0 Compatible
Introducing the Digital Dispenser!!
■Enhanced Functionality
・Automatic vacuum pressure control.
■Comprehensive Production Management Features
・Equipped with logging, self-diagnosis, and emergency stop functions.
■Improved Usability
・Features a 4.3-inch touchscreen.
■Enhanced PC Compatibility
・Equipped with a USB port.
■Network Connectivity Support
・Equipped with a LAN port.
・Supports Ethernet.
General Specifications

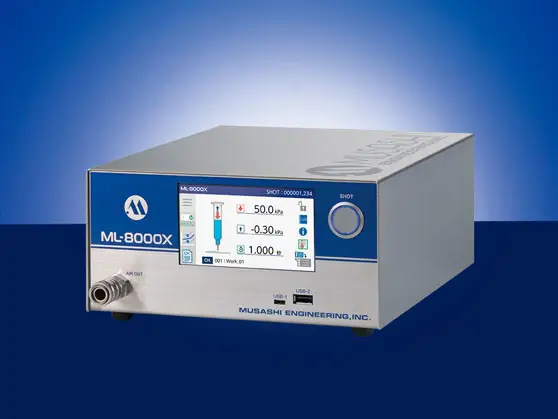

| Name: | Full-function Digital Control Dispenser ML-8000X | |||
| Model: | ML-8000X-CTR-V7-N | ML-8000X-CTR-V7-P | ML-8000X-CTR-V2-N | ML-8000X-CTR-V2-P |
| Dispensing Mode: | Timed Mode, Manual Mode | |||
| Dispensing Pressure Adjustment Range: | 20.0–700.0 [kPa] | 5.0–200.0 [kPa] | ||
| Dispensing Time Setting Range: | 0.010–9999.999s | |||
| Vacuum Pressure Setting Range: | 0.00 to -5.00 [kPa] | |||
| Signal Specifications: | NPN | PNP | NPN | PNP |
| Main Functions: | Auto-increment, auto-ramp, rapid injection, injection condition compensation, self-diagnosis, date/time, operation history, injection counter, password lock, parameter backup, display language switching (Japanese/English/Chinese), display unit switching (kPa/bar), I/O function assignment | |||
| Number of channels: | 400 CH | |||
