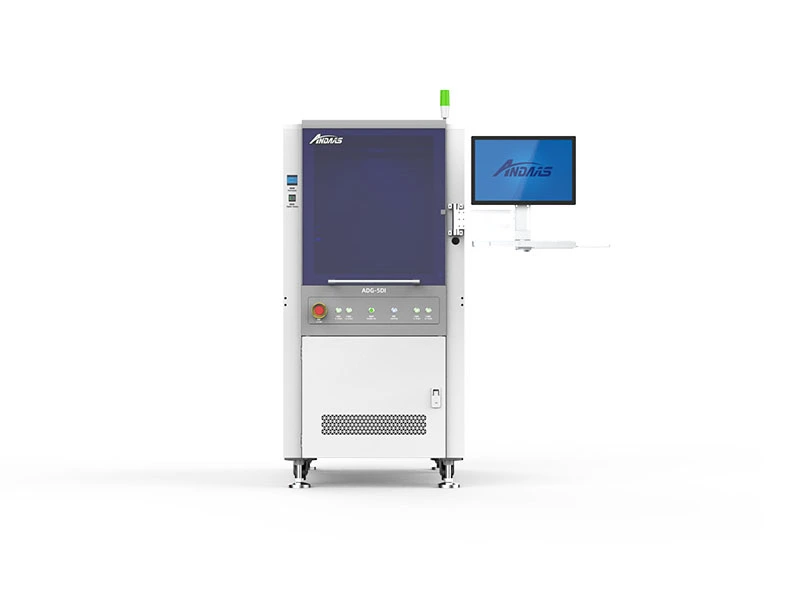

ADG-5DI 5-Axis High-Speed ​​Dispensing Machine

CKD Technology not only has brand new machines in stock, available immediately.

We also have detailed renting business, ready to serve your specific production requirement while significantly lowering your initial investment. Contact us for more details.

CKD has a team of professional engineers, ready to deliver turn key service.

For trading of used machines, please contact us via Whatspp or email.

Technical Specifications:

Feature/Configuration	Technical Parameters
External Dimensions	L1166 × W1200 × H1600 (mm)
Control Method	Industrial PC + Motion Control Card
Dispensing Area	X1=200, X2=200, Y=200 (mm); Dual Y-axis platform
Number of Axes	5 Axes
Drive Method	Linear Motor (X, Y, A, U) / Servo Motor (Z)
Conveying Method	Anti-static belt
Width Adjustment Method	Electric width adjustment, 50–200 mm
Conveying Speed	Stepper motor, 2–5 m/min
Max. Movement Speed	1000 mm/s
Repeat Positioning Accuracy	±0.012 mm
Material Capacity	30 cc / 50 cc

Communication PortSMEMAProgramming ModeImport of SMT placement machine files or online vision-based programmingPower Supply220V 50/60HzAir Pressure≥ 0.65 MPaTotal Power3 kWTotal Weight500 kgAlarm SystemOn-screen menu + audible and visual alarmsSafety StandardCEDispensing Valve OptionsCompatible with: Pneumatic jet valve, piezoelectric valve, auger valve, etc.Optional Extended FunctionsJET-8600 Pneumatic Jet ValveBooster pumpUPSVoltage stabilizerIndustrial barcode scannerMicrobalance (0.1mg)Laser height sensor (SICK)

Designed for manufacturers seeking efficient automation upgrades, this dispensing solution combines intelligent control, flexible configuration, and precise glue management. As a professional China dispensing equipment supplier, it provides reliable automation support for companies requiring consistent dispensing quality, reduced material waste, and improved production efficiency.
