• Uniform coating
• High efficiency
• Easy disassembly, cleaning, and maintenance
• Controllable coating thickness

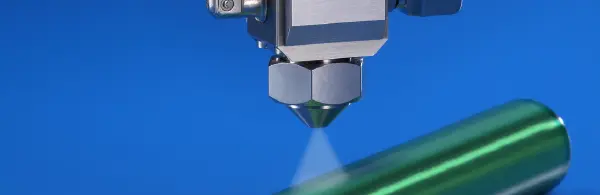

The V-800A utilizes a large nozzle and air cap to enable large-area atomized spraying, thereby increasing spraying efficiency.
The V-850A employs an extended atomizing needle and air cap, allowing for atomized spraying in narrow or deep areas.
The V-880A uses an optional stainless steel needle with a plastic base, enabling atomization of adhesive over tiny areas and achieving the smallest atomization diameter.
• Conformal coating
• Ink
• UV adhesive
• Solvent
| Basic Parameters | V-800A | V-850A | V-880A |
| Dimensions (L x W x H) | 75 x 30 x 140 mm | ||
| Weight | 500 g | ||
| Suitable Fluid Viscosity | 1 ~ 5000 cps | 1 ~ 5000 cps | 1 ~ 1500 cps |
| Dispensing/Output Rate | 0.9 L/min | 0.9 L/min | 0.5 L/min |
| Spray Width | 5~15 mm | 2~5 mm | 0.5–2 mm |
| Valve actuation air pressure | 40 psi | ||
| Max. material feed pressure | 90 psi | ||
| Max. operating frequency | 400 cycles/min | ||
| Cylinder body material | Stainless steel | ||
| Fluid chamber material | Stainless steel | ||
| Needle and nozzle | Stainless steel | ||
| Applicable adhesive viscosity | 10,000–1,000,000 cps | ||
| Dispensing output | 5 L/min | ||
| Min. actuation air pressure | 70 psi | ||
| Max. fluid pressure | 3,000 psi | ||
| Max. operating frequency | 400 cycles/min | ||
| Actuator section material | Stainless steel | ||
| Fluid chamber material | Stainless steel | ||
| Needle material | Carbide | ||
