CKD Technology not only have brand new machines in stock, available immediately.
We also have a detailed rental business, ready to serve your specific production requirement while significantly lowering your initial investment. Contact us for more details.
CKD has a team of professional engineers ready to deliver turnkey service.
For trading of used machines, please contact us via WhatsApp or email.

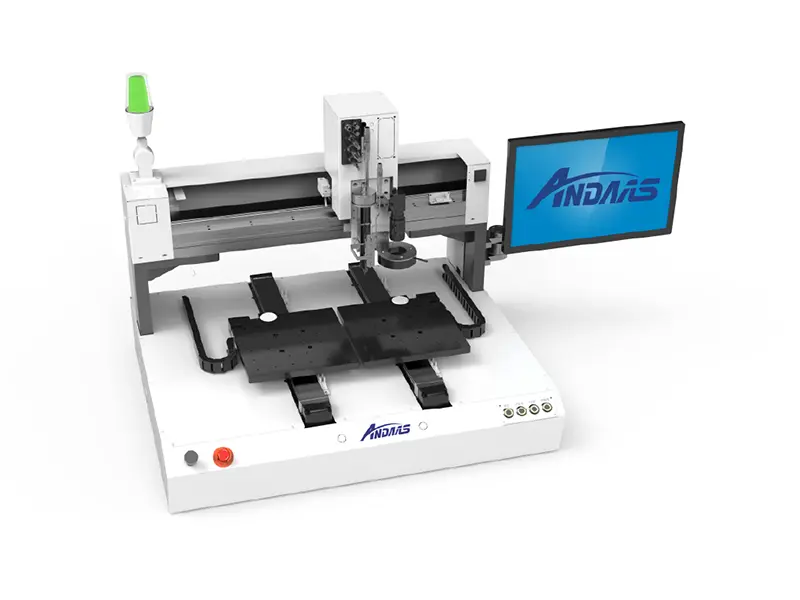

| Model | TSV-200D | HSV-200D |
| External Dimensions | L1120×W740×H760 (mm) | L1200×W740×H1460 (mm) |
| Equipment Weight | 100 kg | 130 kg |
| Control Method | Industrial PC + Motion Control Card | |
| Operating Software | Anda Control Software + Windows System | |
| Programming Method | Vision-based Programming | |
| Axes | X, Y1, Y2, Z | |
| Axis Drive | Servo Motor + Linear Module | |
| Dispensing Travel Range | X1 X2: 260; Y1 Y2: 260; Z: 100 (mm) | X1 X2: 260; Y1 Y2: 260; Z: 100 (mm) |
| Number of Dispensing Valves | 1 unit (standard) | |
| Max. movement speed | 800mm/s | |
| Repeatability | ±0.025mm | |
| Coating capacity | 30cc | |
| Nozzle cleaning device | Vacuum cleaning | |
| Equipment alarm | Menu + audible & visual alarm | |
| Coating detection | Automatic detection | |
| Power supply | 220V 50/60Hz | |
| Air pressure | ≥ 0.65 MPa | |
| Safety standard | CE | |
| Total power | 1.3 kW | 1.5 kW |
| Standard Features | CCD Vision Positioning | |
| Static Electricity Interface | ||
| RS-232 Scanner Port | ||
