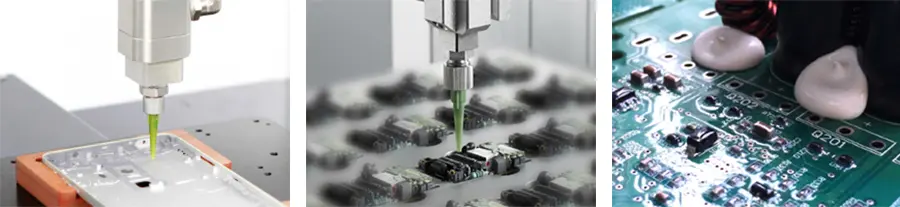

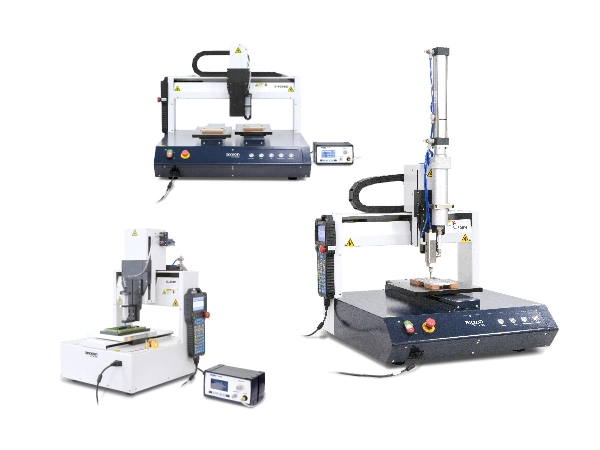

The semi-automated S-Series entry-level desktop robot offers a cost-effective solution for processing irregularly shaped electronic and industrial packages, as well as for testing, soldering, and dispensing applications. Features such as automatic needle calibration and intelligent valve control help minimize setup time for complex programming steps and reduce downtime.
• Dispensing &
• Testing
• Industrial Jetting
• Potting
• Filling
• 3-Axis Motion
• Smart Valve Control
• Handheld Programmer
• Needle Calibration
• Safety Enclosure
• Safety Light Curtain
• Low-Level Detection
• Multi-axis Modules, Various Valves, Various Controllers
| Basic Parameters | S-300H | S-400H | S-500H | S-400HD | S-500HD | S-200E |
| Dimensions W×D×H (mm) | 606×741×638 | 706*841*638 | 806*941*638 | 706*841*638 | 806*941*638 | 521*464*647 |
| X/Y/Z three-axis travel (mm) | 300*300*100 | 400*400*100 | 500×500×100 | - | - | 200*200*100 |
|
X/Y1/Y2/Z four axes Stroke (mm) |
- | - | - | 400*400*400*100 | 500*500*500*100 | - |
| Equipment weight (KG) | 103 | 125 | 142 | 135 | 113 | 48 |
| X/Y/Z repeatability (mm) | ±0.01 | ±0.01 | ± 0.02 | |||
| X/Y/Z Max. Speed (mm/s) | 800/800/300 | 800/800/800/300 | 800/800/300 | |||
| X/Y/Z Acceleration | 0.8g | 0.8g | 0.3g | |||
| X/Y/Z Mechanical Structure | H-Bridge | H-Bridge | H-Bridge | |||
| X/Y/Z Control Method | Standalone Motion Controller | Standalone Motion Control | Standalone Motion Control | |||
| X/Y/Z Drive Method | AC Servo + High-Precision Module | AC Servo + High-Precision Module | AC Servo + Ball Screw Module | |||
| Z-Axis Payload (kg) | 5 | 5 | 5 | |||
| Y-Axis Table Payload (kg) | 10 | 10 | 10 | |||
| Programming Method | Handheld Programmer | Handheld Programmer | Handheld Programmer | |||
| Storage Capacity | 128 | 128 | 128 | |||
| Power (W) | 600 | 800 | 400 | |||
