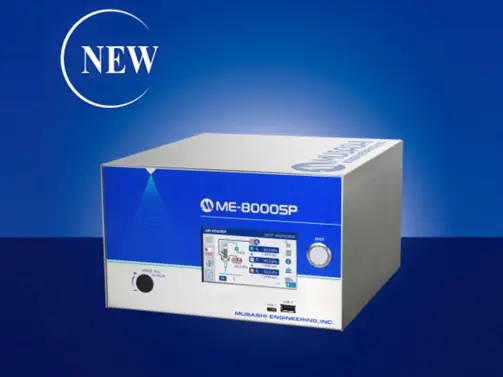

The ME-8000SP is a digital spray valve controller designed for use with systems such as 4-axis desktop robots. By enabling precise digital management of dispensing parameters and spraying processes, the ME-8000SP accelerates the development of new manufacturing techniques. It integrates seamlessly with fully automated mass-production equipment to boost yield rates and features a multilingual touchscreen interface alongside a wide range of functions.
In recent years, the continuous emergence of high-performance spray valves has driven many enterprises to actively seek technological breakthroughs and explore cutting-edge precision spraying processes.
In response to this demand, Musashi Engineering has launched the all-new ME-8000SP digital spray valve controller. It enables highly precise digital management of dispensing parameters, helping enterprises significantly shorten the time required to implement new spraying processes while effectively reducing R&D costs associated with trial and error.
Most importantly, this fully digital controller integrates seamlessly into automated mass-production lines, translating laboratory-grade precision directly into superior production yields and unlocking the immense commercial value of precision control.
| Product Name | Spray Valve Controller |
| Model Number | ME-8000SP-CTR-V5-N / V5-P / V05-N / V05-P |
| Dispensing Method | Spray |
| Control Method | Microcomputer-controlled electric/pneumatic operation |
| Display Screen | 4.3-inch color LCD touchscreen (Supported languages: Chinese / English / Japanese) |
| Dispensing Mode | Timed Mode / Manual Mode |
| Pressure Setting Range (Fluid Feed) | V5 Series: 50.0–500.0 [kPa] | V05 Series: 0.5–50.0 [kPa] |
| Pressure Setting Range (For valve actuation) | 300.0–500.0 [kPa] |
| Pressure setting range (for air blow) | V5 Series: 50.0–500.0 [kPa]; V05 Series: 5.0–200.0 [kPa] |
| Valve opening time setting range | 0.001–9999.999 [s] |
| Air blow time setting range | 0.001–9999.999 [s] |
| Main functions | Auto-increment, auto-ramp, high-speed shot, dispensing condition compensation, date/time*1, operation log, shot counter, alarm, solenoid valve alarm, solenoid valve error, password lock, channel copy, parameter backup, intermittent dispensing, display unit switching (kPa/bar), I/O function assignment, independent pressure control function, film coating function |
| Number of channels | 100 [CH] |
(*1) The device contains a built-in non-rechargeable lithium coin battery to retain date and time data during power outages.
