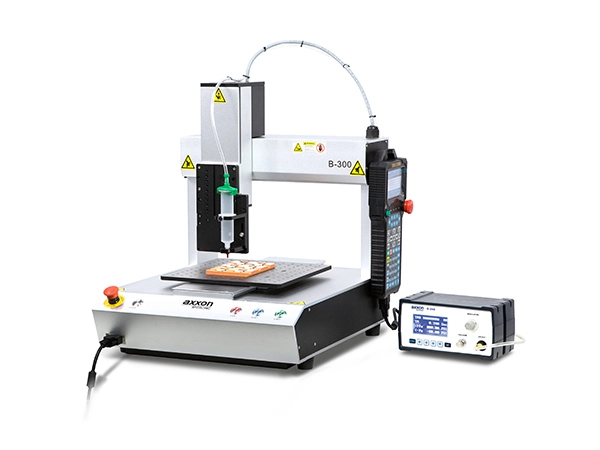

B Series

Cost-effective, Efficient, and User-friendly Desktop Robot
The B-series desktop robot is simple, practical, and easy to program, delivering automated dispensing at the most economical price.

Send Inquiry

Product Description

Process Features

Cost-effective semi-automated equipment; handheld programmer for easy programming and operation; low maintenance and operating costs.

Common Applications

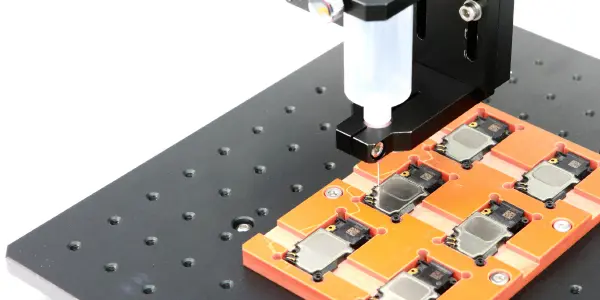

• Thermal grease

• Heat-dissipating oil

• Primer

• Medical test tubes

Specifications

Basic Parameters	B-200H	B-300H	B-400H
Dimensions W×D×H (mm)	320×424×494	420×524×523.5	520×637×512
X/Y/Z Axis Travel (mm)	200×200×75	300×300×75	400×400×75
Equipment Weight (kg)	25	37	48
X/Y/Z Repeatability (mm)	± 0.02
X/Y/Z Max. Speed (mm/s)	500/500/250
X/Y/Z Acceleration	0.3g
X/Y/Z Mechanical Structure	H-Bridge
X/Y/Z Control Method	Independent Motion Control
X/Y/Z Drive Method	Stepper Motor + Timing Pulley + Timing Belt
Z-Axis Payload (kg)	2
Y-Axis Table Payload (kg)	5
Programming Method	Handheld Programmer
Storage Capacity	128
Power (W)	240
