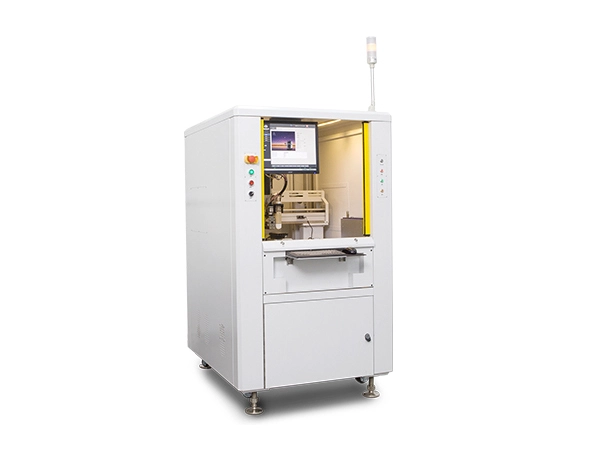

AM500N

Product Features

Powerful 3D Dispensing Trajectory Capabilities

For irregularly shaped, circular, or curved products, the system uses a CCD camera to capture the outer contour, automatically calculates the product's center, and applies axis compensation. It then drives the dispensing control system to execute the process. Spatial trajectory conversion is simple and intelligent, ensuring precise positioning.

Intelligent, Error-Proof, and Easy to Operate

The equipment can capture "MARK" points from a standard product to serve as a positioning template for real-time comparison, or locate products by detecting edge features. It provides timely alarms for anomalies, effectively preventing errors such as misplacement or missed dispensing.

Modular Design for Flexible Configuration

Optional features include QR code scanning, MES system integration, fluid level detection, and automatic nozzle cleaning. Both the control system and hardware utilize a modular design, ensuring ease of operation as well as quick maintenance and component replacement.

• Fully automated image recognition and dispensing

• Industry-first 5-axis coordinated control technology enables precise dispensing along any spatial trajectory required by the product

• Non-contact laser height measurement technology automatically detects product height and adjusts the dispensing height accordingly

• Extensive optional expansion functions to meet diverse dispensing requirements

Key Applications

- Consumer electronics

- Hot-melt adhesive dispensing for LCD polarizers and backlight circular holes

- Sealing dispensing for mobile phone middle frame cavities

- Sealing dispensing for mobile phone charger cavities

- Ink dispensing on the inner walls of OLED screen circular holes

Specifications
