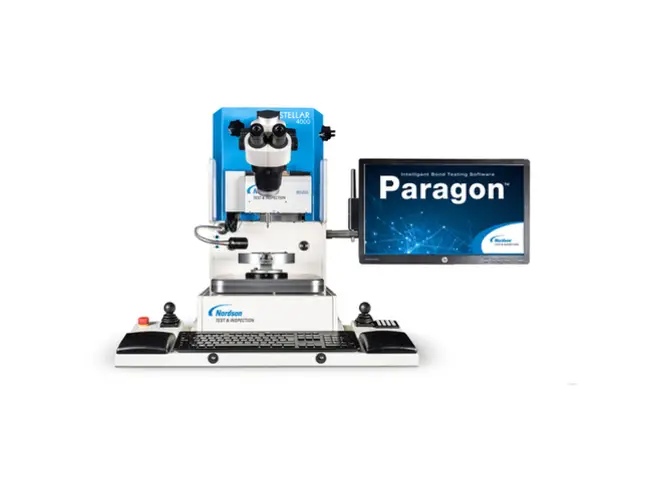

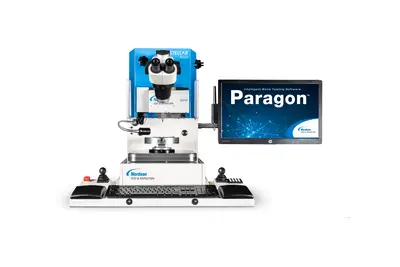

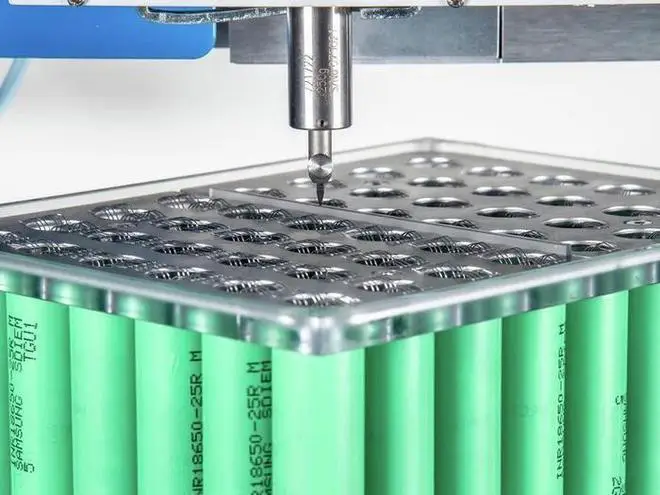

Built for durability, the high-quality frame features a robust design that ensures years of smooth operation. Designed for industry-standard weld strength testing, the STELLAR 4000 incorporates core Nordson technology and is fully compatible with existing 4000 load cartridges. Achieve precision, repeatability, and correlation using either your existing or new load cartridges; the system is engineered for superior system-to-system consistency, delivering reliable pass/fail results every time.
| Key Features | |
|---|---|
| Software | Paragon Lite |
| PC Connection | Ethernet |
| Air Supply Safety | Tool protection & air warning |
| EMO Switch Location | Left keypad |
| Lighting | Software-dimmable LED |
| Platform Type | Integrated & Enclosed |
| Semiconductor Test Standards | |
|---|---|
| Bump Shear |
JESD22-B117B JEITA-ET-7409 |
| Cold Ball Pull |
JESD22-B115A JEITA-ET-7409 |
| Die Shear |
MIL-STD-883 IPC-TM-650 |
| Performance | |
|---|---|
| Repeatability |
+/- 1 µm
|
| System Accuracy | +/- 0.25% FSL |
| Axis Travel (X x Y x Z) | 100 mm x 100 mm x 65 mm |
| XY Speed and Resolution | Max. 2 mm/s, 500 nm |
| Z Speed and Resolution | 5 mm/s, 250 nm |
| Semiconductor Packaging Test Standards | |
|---|---|
| Solder Ball Shear |
MIL-STD-883 ASTM-F129 JESD22-B116B |
| Wire Bond Pull |
MIL-STD-883 IPC-TM-650 |
| Installation | |
|---|---|
| Footprint (W x D x H) | 705 mm x 562 mm x 675 mm |
| Weight | 86 kg |
| Power Supply | 100 - 240 VAC Single-phase |
| Air Supply | Minimum 4.0 bar |
| Certifications | |
|---|---|
| SEMI Standards | S2 & S8 |
| CE Compliance | Machinery, EMC & RoHS |
| Factory Certification | ISO 9001:2015 |
| Environmental | RoHS (2011/65/EU) |
The STELLAR 4000 is simple and comfortable to use, allowing operators to perform tests over extended periods without compromising their health.
• Working height and controls are designed with the operator in mind.

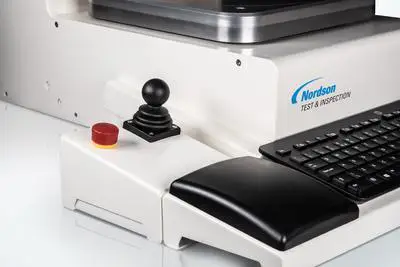

• Soft, padded armrests ensure a pleasant user experience.
• Vibration-free optics and adjustable lighting reduce eye strain during prolonged use.

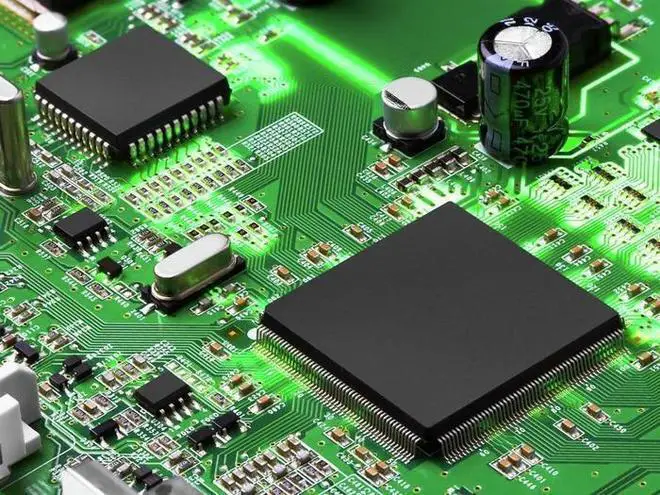

The STELLAR 4000 is specifically designed to meet the demands of semiconductor manufacturing.
• Cleanroom-friendly, enclosed design.
• Evaluated against SEMI S2 (Environmental, Health, and Safety) and SEMI S8 (Ergonomics) standards.
• Rapid setup and intuitive Paragon™ Lite software ensure quick integration into production.

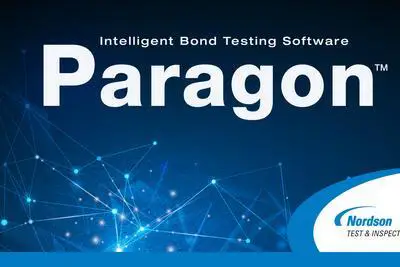

Nordson’s intelligent bond testing software, Paragon™, takes bond testing to a new level. Leverage a highly intuitive and configurable interface for quick, convenient access to advanced features—such as automated GR&R calculations, built-in diagnostics, a unique database search wizard, and advanced reporting capabilities—to boost efficiency and ensure confidence in your bond strength test results.
Paragon™ features an efficient, tab-based layout. All functions are accessible within a single interface, with test-related settings anchored in the left-hand column. Easily accessible toolbars provide quick access to frequently used functions—save, print, toggle the work light, or even clear the tool—all with a single click.
Training new operators is simple, thanks to a linear workflow. Paragon’s intuitive design allows for rapid checklist initiation and easy access to test parameters. Multiple access modes are available, allowing for real-time setting adjustments or the ability to lock functions so operators are restricted to pre-saved test modes.
