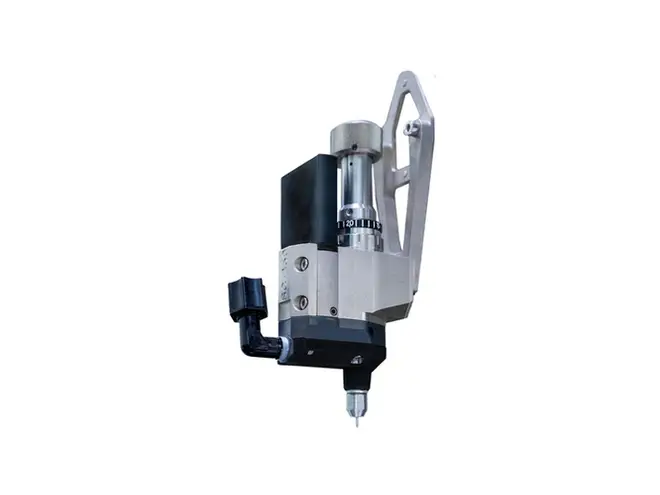

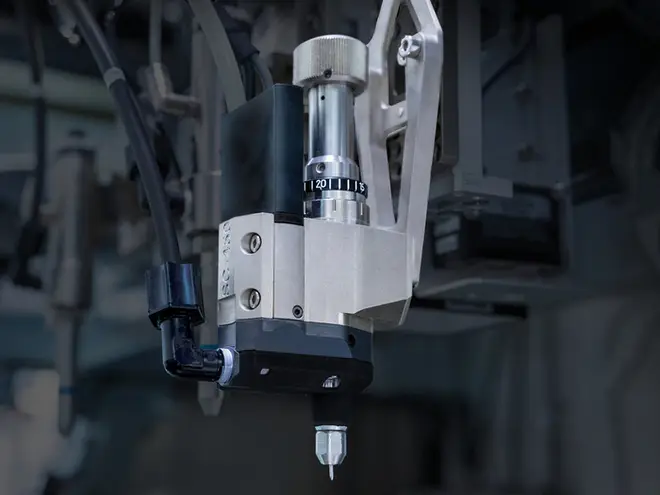

The SC-450 PreciseCoat conformal coating jet expands the viscosity range, offering greater process flexibility. It is ideally suited for applying medium-viscosity silicones and urethanes (125–1200 cps).
The PreciseCoat jet delivers dots and narrow lines as small as 1.5 mm in width and eliminates the need for masking through improved flow control. It is designed for precise, selective coating on substrates densely populated with components of varying heights, addressing requirements such as tight Keep-Out Zones (KOZ) and access in close proximity to tall components. By utilizing a needle design that combines jetting action with rapid pulse-width modulation (PWM) control, the jet can reach areas inaccessible to standard applicators. With superior precision, expanded process options, enhanced usability, and a bubble-reducing valve design, the SC-450 is the solution for improving accuracy, throughput, and uptime.
● Compatible with ASYMTEK Select Coat® SL-1040 and SL-940 conformal coating systems
● Pairs perfectly with the ASYMTEK Select Coat® applicator series; supports dual-simultaneous and triple-valve configurations
● High selectivity and precision for small-area coating, approaching the strictest Keep-Out Zone (KOZ) requirements
● Dot and narrow-line widths as small as 1.5 mm
● Repeatable fluid placement, coating uniformity, and fluid thickness
● Ideal for coating individual components as well as entire circuit boards
● Integrated characterization routines simplify setup
● Eliminates the need for masking
● Improved ease of maintenance
● Extended seal life
● Reduced fluid buildup at the nozzle tip
● Bubble-reducing valve design
● Minimal valve maintenance
● Valve cleaning without operator intervention
● Upright orientation
