Modern electronic assemblies are increasingly characterized by high density and 3D configurations, making it difficult for standard vertical coating methods to cover component sidewalls and shadowed areas. The ASYMTEK 4-axis tilt accessory addresses this challenge by providing programmable, multi-angle operation for conformal coating valves.

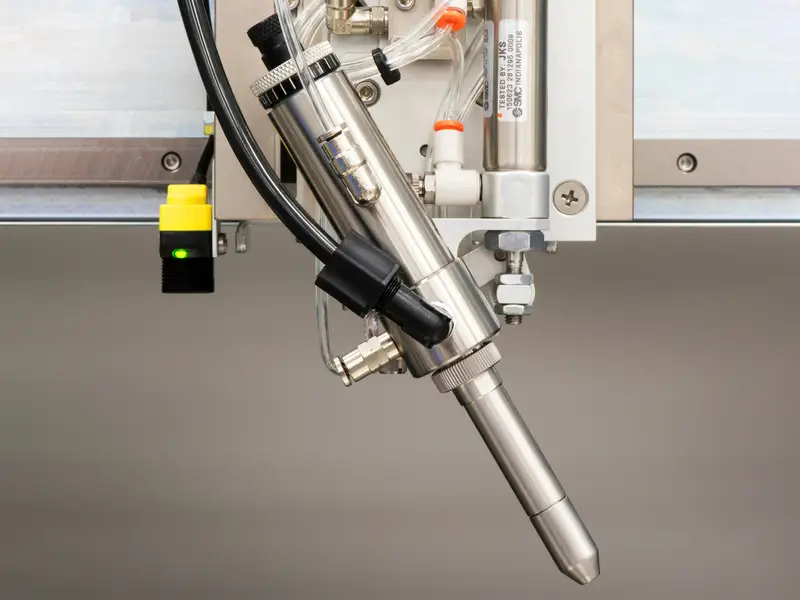

This accessory enables compatible ASYMTEK valves to operate in a standard upright position or tilt 30° from the vertical in four directions (left, right, front, and back). This flexibility facilitates the coating of hard-to-reach areas—such as component sidewalls, leads, and undersides of overhangs—eliminating the need for manual touch-ups or rework.
● Vertical and 30° tilted positions
● Tilts in four directions: left, right, forward, and backward
● Ideal for coating beneath overhangs and on component sidewalls
● Fully programmable control via EasyCoat® 6 software
● Tilt angles configurable for each coated element
● Quick and easy setup with minimal downtime
● Mounts directly onto Select Coat® SL-940 or SL-1040 Z-axis applicators
● Facilitates easy upgrades for existing systems
